Delikon High
Temperature EMI Shielding Heavy Series Over Braided Flexible
Metallic Conduit (SM-70001)
|
 |
 |
Delikon Electromagnetic
Interference Shielding High Temperature Heavy Series Over
Braided Flexible Metal Conduit and Heavy Series Connector
protect motion control cable, VFD Cable, and automation
cable of Steel Industry, Battery Plant, Automotive and Tire
industry, Cement Industry, Chemical industry, Oil and Gas
Industry, Semiconductor industry, and Mining industry.
Delikon has been providing High
Temperature EMI Shield Heavy Series Over Braided Flexible
Metal Conduit and High Temperature Heavy Series Connector
for protection of automation control system cables in steel
making and processing operations including assets such as
electric arc furnaces, continuous casters, and rolling and
processing lines.
In addition to the benefit of providing robust protection
from the environment, either mechanically tough enough to
wear and abrasion or resistant to the industry ambient
conditions, Delikon Heavy Series Over Braided Flexible Metal
Conduit and Heavy Series Connector also provide proper
shielding for the cables, which is essential to many
applications as it can keep out unwanted external
interference as well as contain the electromagnetic energy
radiated by a cable, which can protect nearby sensitive
components.
*5mm~6" trade size
*EMI/RFI shielding
*Resists high temperature and hot metal splashes |
 |
|
| Type |
Trade Size |
I.D. (mm) |
O.D. (mm) |
Min Bending Radius
(mm) |
Meter/Coil |
|
Min. |
Max. |
Min. |
Max. |
|
SM-7000100 |
5mm |
4.8 |
5.3 |
7.8 |
8.3 |
30 |
100 |
|
SM-7000101 |
- |
7.5
|
8.3
|
10.8 |
11.6 |
35 |
100 |
|
SM-7000102 |
1/4" |
9.7 |
10.2 |
14.5 |
15.0 |
40 |
100 |
|
SM-7000103 |
3/8" |
12.3 |
12.8 |
16.6 |
16.8 |
50 |
50 |
|
SM-7000104 |
1/2" |
15.8 |
16.2 |
20.5 |
20.9 |
65 |
50 |
|
SM-7000106 |
3/4" |
20.8 |
21.3 |
25.7 |
26.2 |
75 |
50 |
|
SM-7000110 |
1" |
26.4 |
27.1 |
32.6 |
33.1 |
100 |
50 |
|
SM-7000112 |
1-1/4" |
35.0 |
35.5 |
41.0 |
41.5 |
125 |
30 |
|
SM-7000114 |
1-1/2" |
40.1 |
40.6 |
46.8 |
47.3 |
150 |
30 |
|
SM-7000120 |
2" |
50.5 |
51.2 |
58.3 |
59.0 |
175 |
20 |
|
SM-7000124 |
2-1/2" |
62.9 |
63.9 |
73.1
|
74.1 |
200 |
10 |
|
SM-7000130 |
3" |
77.0 |
78.0 |
88.0 |
89.0 |
225 |
10 |
|
SM-7000140 |
4" |
99.6 |
101.6 |
109.7 |
111.5 |
275 |
10 |
|
SM-7000150 |
5" |
125.0 |
127.0 |
137.0 |
139.0 |
350 |
5 |
|
SM-7000160 |
6" |
150.0 |
153.0 |
162.0 |
164.5 |
480 |
5 |
|
Heavy
Series Over Braided Flexible Metal Conduit is widely
used to counter mechanical stress and is highly flexible, and it
is resistant against tensile stresses and transverse pressure. This
heavy Series EMI Shielding over braided flexible conduit also offers excellent protection to cables
against hot metal
particles, and immunity from electromagnetic interference. Heavy
Series Over Braided Flexible Metal Conduit resists hot metal
splashes and is most suitable for
steel industry
electrical cable
protection.
 Delikon
EMI Shielding
Heavy Series Over Braided
Flexible Conduit and Fittings offer reliable protection for automotive
industry automation cables, spot welding line cables, motion control
cables, sensor cables and inspection equipment cables.
Delikon interference
shielding Heavy Series Over Braided Flexible Conduit and Heavy Series
Connector
 Delikon
interference shielding Heavy Series Over Braided Flexible Conduit and
Heavy Series Connector are designed for steel mill, oil and gas
industry, Refineries and Petrochemical industry, automotive industry
automation cable protection. Delikon interference shielding Heavy Series Over
Braided Flexible Conduit and Heavy Series Connector provide excellent
protection against signal interference for automation PLC cable, PAC
cable, VFD motor cable, variable frequency drive and control cable,
Valve Control Cable, sensor and actuator cable, communication cable as
well as motion control cable.
Delikon Shielding Heavy Series Flexible Conduit
and Shielding termination Heavy Series Connector
are used to protect the data being transferred through the cable from
degradation by EMI exposure, which is common in data centers, industrial
settings,
offices, and other settings where computer technology,
electrical equipment, or electronic equipment is in heavy use.
 Delikon
Shielding Heavy Series Flexible Conduit and Shielding termination Heavy
Series Connector are most often found in industrial settings and
installations where other nearby equipment is likely to generate
electromagnetic interference EMI. |
|
Flexible metallic conduit, stainless steel wire braiding |
FLEXIBLE STEEL CONDUIT WITH
STAINLESS STEEL
OVER BRAIDING, This conduit utilises strip wound steel conduit as a
core, which is then over-braided with stainless steel wire. The wire over braid
provides abrasion resistance and protects the core from mechanical
damage. Over Braided Flexible Conduits provide high mechanical strength yet
offer high flexibility. The conduit, at full extension, offers high
tensile strength without elongation thus protecting cables from
being
over-tensioned or stretched. It will provide an enhanced level of EMI
screening and a wide operating temperature. This heavy series over
braided flexible metal conduit is excellent in protecting cables against
hot swarfs in
steel industry. |
|
 Download
the catalog page for DELIKON SM-70001
Over Braided
Flexible Metal Conduit in
PDF File format.
Or have a look at other
models of
over braided flexible conduit and braided conduit fittings. |
 |
 |

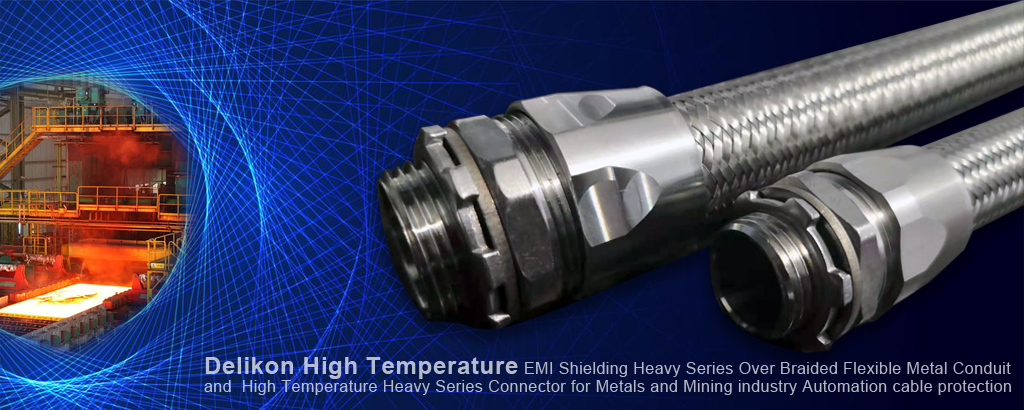

Delikon High
Temperature EMI Shielding
Heavy Series Over Braided Flexible Metal Conduit and High
Temperature Heavy Series Connector for Metal and Mining
 industry
Automation cable protection
Delikon has been providing High
Temperature EMI Shielding Heavy Series Over Braided Flexible Metal
Conduit and High Temperature Heavy Series Connector for protection
of automation control system cables in steel making and processing
operations including assets such as electric arc furnaces,
continuous casters, and rolling and processing lines.
In addition to the benefit of
providing robust protection from the environment, either
mechanically tough enough to wear and abrasion or resistant to the
industry ambient conditions, Delikon Heavy Series Over Braided
Flexible Metal Conduit and Heavy Series Connector also provide
proper
shielding
for the cables, which is essential to many applications as it can
keep out unwanted external interference as well as contain the
electromagnetic energy radiated by a cable, which can protect nearby
sensitive components. |
 |
Delikon
Electromagnetic Interference Shielding
Heavy Series Over Braided
Flexible Conduit and Heavy Series Connector protect motion control
cable, VFD Cable, and automation cable of Steel Industry, Automotive and Tire
industry, Cement Industry, Chemical industry, Oil and Gas Industry,
Semiconductor industry, battery industry and Mining industry
A cable to electro magnetic frequencies looks a lot like an antenna.
If we allow too much signal to noise ratio into the system, the
machine will not work as expected.
 You may see unexpected movement
such as, not stopping on position, moving when the machine isn’t
supposed to move, or the opposite, stopping when it isn’t supposed
to stop. You could also see infrequent faulting of the drive for
feedback issues or current loop issues.
Delikon
Electromagnetic
Interference Shielding
Heavy Series Over Braided Flexible Conduit
and
Heavy Series Connector
provide Shielding around a cable and
protect the cable from EMI generated from other areas of the motion
system. The heavy series flexible sheath is a magnetic shield to
prevent radiation from entering and exiting the cable.
 The
Heavy Series Connector makes sure the shields are bonded and
grounded at both ends to equipment enclosure or electric cabinet. A
360-degree metal clamp slip around the outer stainless braiding and
the clamp is directly in contact with the shield when the connector
back shell with a cone shape interior is tightened. The heavy series
connector clamps tightly around the braiding and grounds the
shielding, which helps to protect the cables against EMI noise.
Delikon Electromagnetic Interference Shielding Heavy Series Over
Braided Flexible Conduit and Heavy Series Connector also ensure
highly reliable mechanical protection as well as hot metal sparks
protection and flexible routing of wires and cables. |
|
 Related
Products:
Delikon Automation Flexible Conduit and Connector |
|
|
 |
 Delikon
Electromagnetic Shielding Heavy Series Over Braided Flexible Conduit
and Heavy
Series Connector protect oil industry, automotive industry and steel
mill automation data and signal wire and cable
Delikon
Electromagnetic Shielding
Heavy Series Over Braided Flexible Conduit
and Heavy Series Connector protect oil and petroleum industry,
automotive industry and steel mill automation data and signal wire
and cable from signal distortion caused by nearby equipment and
devices or prevent a stronger signal from leaking out and
interfering with surrounding electronics. The outer braided shield
of the over braided flexible
conduit creates a barrier that separates the electric field
surrounding the central conductor from anything outside.
Delikon Shielding Heavy Series Over Braided
Flexible Conduit and Heavy Series Connector
is used to enhance the cable structural and
signal integrity, and to protect it against external environmental
conditions such as water for dust ingress, chemical exposure, and
hot metal sparks exposure, preventing cable failure as the result of
impact and abrasion, and against harsh environmental conditions such
as crushing forces, rodents and UV radiation. Delikon heavy series
connector is tough,
durable,
and has an internal grounding clamp that provides proper shield
termination and grounding to ensure the safety of workers and
equipment. |
 |
Delikon EMI Shielding Heavy
Series Flexible Sheath Over Braided Flexible Metal
Conduit with external stainless steel braiding and
Shield Termination High Temperature Heavy Series Connector for steel
mill Automation revamping cable protection
 Delikon
provides EMI Shielding Flexible Wiring Protection
Solutions for Steel Industry. Reliability is an
objective for Delikon flexible conduit system.
Therefore, we are able to provide you with robust
Heavy Series Flex Sheath Over Braided Flexible Metal
Conduit and Heavy Series Connector to meet the main
cable protection needs of the production process.
Whether in the coke oven battery, blast furnace,
drives, continuous pouring or metal processing
rolling mills, Delikon Heavy Series Flex Sheath Over
Braided Flexible Metal Conduit and Heavy Series
Connector are designed to withstand such aggressive
environments with excellence.
The metal industry is one of the most versatile
industries and therefore predestined for
Delikon heavy series over
braided flexible conduit
and heavy series
connector automation
cable protection solutions. It requires mechanical
protection and top EMI noise reduction performance
in difficult, sometimes extreme working conditions.
With Flexible solutions from Delikon, you master
these cable management requirements with sustainable
success and measurable efficiency.
Whether general industry, automotive supplier or
foundry and forging industry: their many facets make
the metal industry one of the most demanding
industries on the market. Thanks to our many years
of experience we are able to serve the entire
spectrum and offer customized cable protection
flexible conduit solutions for more efficient
processes in metal processing in every area.
Delikon EMI Shielding Heavy Series Over Braided
Flexible Conduit and Heavy Series Connector protect
Mill motors for slabbing, and blooming mill, Cold
Rolling mill VFD motor cable, and the shielding
provides excellent protection against signal
interference caused by voltage fluctuations and
current spikes.
Designed specifically for the harsh environments
found in steel and aluminium rolling mills, Delikon
Heavy Series Over Braided Flexible Conduit and Heavy
Series Fittings protect Hot metal IR detector,
Optical Speed meter and Non-contact speed
measurement instruments cables. The Heavy Series
Over Braided Flexible Conduit and Heavy Series
Connectors provide EMI shielding as well as
mechanical armouring for steel mill cables. |
 |
Delikon
Electromagnetic Shielding Heavy Series Over Braided Flexible Conduit and
Heavy Series Connector protect and shield oil and gas industry
automation wire and cable
 Oil
and gas is a dynamic global industry that faces challenges in cost
management, extraction of high value from current assets, and
maximization of the up time. Automation in the Oil and gas industry can
improve efficiency and bring down costs. Delikon Electromagnetic
Shielding Heavy Series Over Braided Flexible Conduit and Heavy Series
Connector are helping the oil and gas industry to move closer to
operational excellence. Hence, Delikon has been deploying various
automation cable protection and shielding solutions to ensure that
optimization of operations.
Delikon Electromagnetic Shielding Heavy Series Over Braided Flexible
Conduit and Heavy Series Connector protect wire and cable of Sensors
Transmitters, Distributed Control Systems DCS, Programmable Logic
Controllers PLC, Supervisory Control and Data Acquisition System
SCADA, Safety
Instrumented Systems SIS,
Variable Frequency Drive
VFD and communication cables in manufacturing facilities. Use Delikon
Electromagnetic Shielding Heavy Series Over Braided Flexible Conduit and
Heavy Series Connector to protect wire and cable from signal distortion
caused by nearby equipment and devices. The Heavy Series Connector has a
split clamping ring which clamps tightly around the stainless steel
braiding when tightened. This continous grounding path formed by the
flexible conduit and the connector dissipates any stored charge. Delikon
heavy series over braided flexible conduit system provides good
protection against abrasion and mechanical stress, as well as
hot metal spark and splash.
Delikon
interference shielding Heavy Series Over Braided Flexible Conduit
and Heavy Series Connector protect Petroleum Oil and Gas Industry
Automation wiring, improving reliability and stability
With
increasing demand from the industry, Delikon produces a wide range
of
interference shielding
Heavy Series Over Braided Flexible Conduit and Heavy Series
Connector for automation and seamless data communication cable
protection. Delikon interference shielding Heavy Series
Over Braided Flexible Conduit and Heavy Series Connector are to
combat the effects of signal interference, providing proper
shielding for SCADA and PLC cables
adversely affected by EMI RFI ESI
electromagnetic interference, radio frequency interference, and
electrostatic interference. |
 |
Delikon Waterproof PVC
Coated Stainless Steel Flexible Conduit for
farming equipment and agricultural
automation wiring harness
 Farmers have
seen firsthand how farming equipment has
improved over the decades to increase
efficiency and to feed an ever growing
population. Corrosion and environmental
stress resistant, Delikon Waterproof PVC
Coated Stainless Steel Flexible Conduit is
manufactured to protect the wirings and
cables of Farming Equipment, including
electric irrigation pumping systems, Water
heaters, tractor, electric tractors and
other electric farm vehicles which are used
on many different types of farms.
A major new change for farming equipment is
the trend of switching fossil fuel powered
farming equipment towards electric farming
equipment. In addition to servicing the
automotive market, Delikon flexible conduit
and connector cable protection systems are
the best choice for custom harnesses,
pigtails and wiring assemblies for Original
Equipment Manufacturers OEM as well. Delikon
specializes in designing, developing and manufacturing Flexible
Conduit and Connector for combustion, hybrid and electric vehicles
Wiring Harness. Delikon automotive wiring harness flexible conduit
and fittings provide
superior cable
protection solutions for original
equipment manufacturers of passenger cars, sport utility vehicles
and trucks. |
 |
|
Emi
rfi esd shielding heavy series over braided liquid tight
conduit
Delikon
EMI Shielding Heavy Series Over Braided Flexible Conduit and
Shield Termination Heavy Series Connector protect automation
and VFD cable
For
Industry Automation
CONNECTORS
& FITTINGS FOR
